AWDF Forged Wheels for Mercedes S-class W223

AWDF Forged Wheels for Mercedes S-class W223

Fits your Mercedes S W223/Z223
$938.00 - $938.00
$938.00
$938.00 - $938.00
$938.00
0% Restocking Fee
Size: 21x9" +30
Color: Gloss Black

This wheel design, color, and size is not part of our regular in-stock program. However, you can purchase it at the price listed above, with direct delivery to your address. Please note, as this is a build-to-order product, the production and delivery process will take approximately 6-8 weeks from the date of your order.

Please note: The price displayed is for one unit; four must be added to the cart to purchase a set of four.

Atomic Wheels Lifetime Warranty

We offer a lifetime structural warranty for your peace of mind.

Fully Forged Wheels

Our wheels are crafted from premium 6061-T6 forged aluminum and engineered to exceed industry standards, ensuring exceptional performance and durability.

Accidental Damage Replacement

Street damage, road hazards, or unexpected mishaps, it happens to the best of us. Atomic Wheels supports every driver with 50% off a replacement forged wheel when the unexpected occurs. This program is limited to one full set, up to 4 wheels total, per customer and applies exclusively to forged wheels, and a photo of the damaged wheel is required to process the replacement. Drive with confidence, we’ve got you covered.

Driven. Tested. Approved.

Hear from drivers who’ve made the switch to forged performance.

Monolithic forged presence for the W223 S-Class.

The AWDF uses a smooth closed-face profile that suits the W223 S-Class body without looking busy.
Built as a staggered 21x9 +30 / 21x10 +44 setup for Mercedes S-Class W223/Z223.
At roughly 34.17-35 lbs, the forged construction keeps weight controlled for a large luxury sedan wheel.
Forged 6061-T6 construction and a 1,873 lb load rating support the S-Class platform.
Compatible with Mercedes OEM lug bolts and TPMS; use a thin-wall socket for installation.

Specifications:

Application Mercedes S-Class W223/Z223, front wheels
Size and weight 21x9 +30 ~ 34.17 lbs
Offset +30
PCD (Bolt Pattern) 5x112
Center Bore 66.6 mm
Construction Forged 6061-T6 Aluminum
Load Rating 850 KG (1,873 lbs)
Recommended Tire OEM front tire

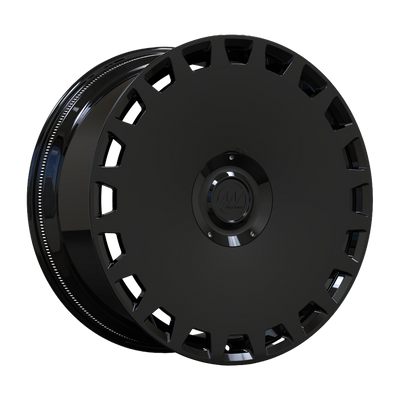

AWDF forged wheel specification render

Why this S-Class setup works

A forged 21-inch closed-face wheel built around the stance, load, and visual restraint of the W223 S-Class.
The staggered 21x9 front and 21x10 rear setup gives the S-Class a planted luxury stance. The closed-face AWDF surface gives the W223 a refined executive look with subtle perimeter venting. FEA validation, forged 6061-T6 aluminum, and a 1,873 lb load rating support real-world use. A knurled bead seat helps keep the tire seated under heavy braking and acceleration. 285/30ZR21 is the recommended rear tire size for the 21x10 wheel.

Built for Mercedes S-Class W223

W223 fitment, forged construction, FEA, knurled bead seat, and lightweight hub machining.

S-Class W223 Fitment

AWDF gives the Mercedes S-Class a clean forged 21-inch stance with a monolithic Gloss Black face.

Rear Three-Quarter Presence

The rear view shows how the closed-face design carries across the long W223 body.

Forged Closed-Face Design

A forged 6061-T6 structure supports the 21-inch format while keeping the face clean.

Finite Element Analysis (FEA)

Virtual stress testing helps validate strength before production machining.

Knurled Bead Seat

The textured bead seat helps resist tire slip during heavy braking and acceleration.

Lightweight Hub Machining

Back-pad machining reduces unnecessary mass while preserving a secure hub connection.

Tire Fitment Guide

AWDF Mercedes S-Class W223 staggered 21-inch recommended tire sizes.
Wheel Size Setup Mercedes S-Class W223
21x9 +30 Front OEM front tire
21x10 +44 Rear 285/30ZR21

For the AWDF W223 setup, the source fitment recommends 285/30ZR21 on the 21x10 rear wheel. Match the front tire to the factory W223 21-inch front rolling diameter.

Availability

If you see the "Add To Cart" button, it means our inventory is fully stocked, ensuring prompt delivery. Expect your items to be on their way within two business days after you've made your purchase.

Features

  • All Atomic Wheels are covered by our lifetime structural warranty.
  • Each set comes with color-matched Atomic Wheels center caps.

Please note: The price displayed is for one unit; four must be added to the cart to purchase a set of four.

Custom order

If the design or size you are looking for is not available, we are pleased to offer you the option to create a custom order.

This allows you to tailor your wheels to your specific preferences and needs. We also provide a wide range of color options to ensure that your wheels perfectly match your vision.

More details

FAQ

What is the difference between a forged rim and a flow-formed rim?

The main difference between forged and flow-formed rims lies in their manufacturing processes and materials. Forged rims, made from 6061-T6 aluminum, are formed under extreme pressure and then precisely machined using CNC technology, resulting in ultra-strong, lightweight wheels ideal for high performance. Flow-formed rims, also known as spin-formed, start with a cast mold and are shaped using hydraulic pressure and rotation. This enhances the strength of cast rims while maintaining a more affordable price point, offering a solid balance of performance and cost.

Where do you make the wheels?

The factory where we manufacture the rims is in China. They are made with state-of-the-art technology, subjected to rigorous safety and quality control processes.

Do you ship outside of the United States?

Yes, we ship worldwide. However, purchasing a rim in stock can be expensive due to shipping costs. Therefore, we recommend placing a custom order where items are shipped directly from the factory to reduce costs. In this way you will get the same price worldwide, because the rims will be delivered from the factory.

What Tire Sizes Do You Recommend for Installing Your Rims?

We recommend sticking with OEM sizes for the best performance and fit. However, there is often some room for alternatives based on your specific needs and preferences. We’re happy to help with any questions and guide you in choosing the best tire size for your setup.

What Are Your Cancellation Policies if I Want a Refund on My Pre-Order?

If you’ve made a pre-order payment, you can cancel your order and request a refund at any time before the shipment is processed.

How Long Does It Take to Receive an Order After Making a Purchase?

We ship orders twice a week on Tuesdays and Fridays using UPS Ground. Typically, it takes 2-5 business days for wheels to be delivered after shipment.

Can I Pick Up the Rims Directly if I’m Near Your Location?

Yes, you can pick up the rims directly if you’re near our location. Please note that Texas sales tax will be applied to in-state sales.

Are Your Center Caps Compatible with the OEM Ones?

Most of our center caps are 65mm, so they are not compatible with the OEM center caps.
