AW09 Forged Wheels for Rivian R2

AW09 Forged Wheels for Rivian R2

$735.00 - $735.00
$735.00
$735.00 - $735.00
$735.00
0% Restocking Fee
Diameter: 20"
Size: 8.5" +38
Color: Satin Black
Partial payment: 50% deposit

Enjoy an extra 10% off at checkout with our Early Bird Pre-Order. This discount stacks with any other active coupons.

Estimated delivery: mid-August 2026. Your remaining balance will be charged once the items arrive at our warehouse.

Please note: The price displayed is for one unit; four must be added to the cart to purchase a set of four.

Atomic Wheels Lifetime Warranty

We offer a lifetime structural warranty for your peace of mind.

Fully Forged Wheels

Our wheels are crafted from premium 6061-T6 forged aluminum and engineered to exceed industry standards, ensuring exceptional performance and durability.

Accidental Damage Replacement

Street damage, road hazards, or unexpected mishaps, it happens to the best of us. Atomic Wheels supports every driver with 50% off a replacement forged wheel when the unexpected occurs. This program is limited to one full set, up to 4 wheels total, per customer and applies exclusively to forged wheels, and a photo of the damaged wheel is required to process the replacement. Drive with confidence, we’ve got you covered.

Driven. Tested. Approved.

Hear from drivers who’ve made the switch to forged performance.

Forged AW09 fitment for the Rivian R2.

The AW09 brings a detailed forged spoke layout to the Rivian R2 with a clean Satin Black EV stance.
Built in 20x8.5 +38 specifically for the R2 platform.
At roughly 32 lbs, AW09 helps reduce unsprung weight versus heavier OEM 20-inch setups.
Forged 6061-T6 construction and a 2,205 lb load rating support daily and light adventure use.
Compatible with OEM TPMS and lug nuts; use a thin-wall socket for installation.

Specifications:

Application Rivian R2, all trims and all years
Size and weight 20x8.5 +38 ~ 32 lbs
Offset +38
PCD (Bolt Pattern) 5x114.3
Center Bore 64.1 mm
Construction Forged 6061-T6 Aluminum
Load Rating 1,000 KG (2,205 lbs)
Certification JWL-VIA

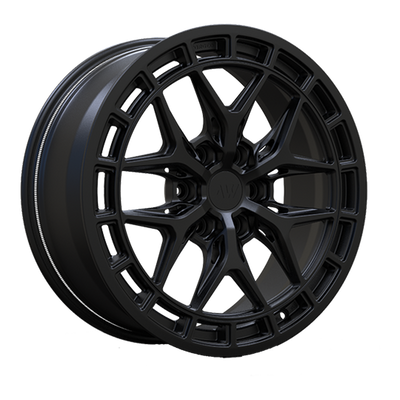

AW09 forged wheel specification render

Why this Rivian R2 setup works

A forged 20-inch setup that keeps the R2 stance clean without overloading the platform.
Purpose-built 20x8.5 +38 fitment for the Rivian R2, with factory-friendly geometry. Forged 6061-T6 construction keeps the wheel light while preserving strength for EV use. OEM 255/60R20 tires preserve factory diameter; 275/55R20 adds stance while staying within 1.5%. The knurled bead seat helps resist tire slip under hard braking and acceleration. OEM TPMS and lug-nut compatibility keeps installation straightforward.

Built for Rivian R2

Vehicle fitment, forged construction, FEA, knurled bead seat, and lightweight hub machining.

Rivian R2 Fitment

AW09 gives the Rivian R2 a forged Satin Black stance in a 20x8.5 +38 setup.

Rear Three-Quarter Stance

The rear view shows how the AW09 design carries across the R2 body line.

Forged Construction

Forged 6061-T6 aluminum keeps weight controlled while preserving EV-ready strength.

Finite Element Analysis (FEA)

Design validation supports real load paths before production machining.

Knurled Bead Seat

The knurled bead seat helps reduce tire slip during heavy acceleration or braking.

Lightweight Hub Machining

Hub-side machining removes unnecessary mass while preserving the forged structure.

Tire Fitment Guide

AW09 Rivian R2 20x8.5 +38 recommended tire sizes.
Wheel Size Setup Rivian R2
20x8.5 +38 OEM diameter 255/60R20
20x8.5 +38 Approved alternative 275/55R20

OEM 255/60R20 preserves factory diameter and speedometer accuracy. 275/55R20 adds visual presence while staying within 1.5% of OEM diameter, so recalibration is not required.

Availability

If you see the "Add To Cart" button, it means our inventory is fully stocked, ensuring prompt delivery. Expect your items to be on their way within two business days after you've made your purchase.

Features

  • All Atomic Wheels are covered by our lifetime structural warranty.
  • Each set comes with color-matched Atomic Wheels center caps.

Please note: The price displayed is for one unit; four must be added to the cart to purchase a set of four.

Custom order

If the design or size you are looking for is not available, we are pleased to offer you the option to create a custom order.

This allows you to tailor your wheels to your specific preferences and needs. We also provide a wide range of color options to ensure that your wheels perfectly match your vision.

More details

FAQ

What is the difference between a forged rim and a flow-formed rim?

The main difference between forged and flow-formed rims lies in their manufacturing processes and materials. Forged rims, made from 6061-T6 aluminum, are formed under extreme pressure and then precisely machined using CNC technology, resulting in ultra-strong, lightweight wheels ideal for high performance. Flow-formed rims, also known as spin-formed, start with a cast mold and are shaped using hydraulic pressure and rotation. This enhances the strength of cast rims while maintaining a more affordable price point, offering a solid balance of performance and cost.

Where do you make the wheels?

The factory where we manufacture the rims is in China. They are made with state-of-the-art technology, subjected to rigorous safety and quality control processes.

Do you ship outside of the United States?

Yes, we ship worldwide. However, purchasing a rim in stock can be expensive due to shipping costs. Therefore, we recommend placing a custom order where items are shipped directly from the factory to reduce costs. In this way you will get the same price worldwide, because the rims will be delivered from the factory.

What Tire Sizes Do You Recommend for Installing Your Rims?

We recommend sticking with OEM sizes for the best performance and fit. However, there is often some room for alternatives based on your specific needs and preferences. We’re happy to help with any questions and guide you in choosing the best tire size for your setup.

What Are Your Cancellation Policies if I Want a Refund on My Pre-Order?

If you’ve made a pre-order payment, you can cancel your order and request a refund at any time before the shipment is processed.

How Long Does It Take to Receive an Order After Making a Purchase?

We ship orders twice a week on Tuesdays and Fridays using UPS Ground. Typically, it takes 2-5 business days for wheels to be delivered after shipment.

Can I Pick Up the Rims Directly if I’m Near Your Location?

Yes, you can pick up the rims directly if you’re near our location. Please note that Texas sales tax will be applied to in-state sales.

Are Your Center Caps Compatible with the OEM Ones?

Most of our center caps are 65mm, so they are not compatible with the OEM center caps.
