AW11 Forged Wheels for Tesla Model S/X

AW11 Forged Wheels for Tesla Model S/X

Fits your Tesla Model S/X
Save 20% Save 20%
$925.00
$925.00 - $925.00
$925.00
$740.00
$740.00 - $740.00
$740.00
0% Restocking Fee
No restocking fee is charged on eligible returns. Return shipping, used or installed items, and custom-built orders may still have exclusions, so contact us before sending anything back.
Diameter: 22"
Size: 9.0" +35
Color: Gunmetal

Please note: The price displayed is for one unit; four must be added to the cart to purchase a set of four.

Atomic Wheels Lifetime Warranty

We offer a lifetime structural warranty for your peace of mind.

Fully Forged Wheels

Our wheels are crafted from premium 6061-T6 forged aluminum and engineered to exceed industry standards, ensuring exceptional performance and durability.

Accidental Damage Replacement

Street damage, road hazards, or unexpected mishaps, it happens to the best of us. Atomic Wheels supports every driver with 50% off a replacement forged wheel when the unexpected occurs. This program is limited to one full set, up to 4 wheels total, per customer and applies exclusively to forged wheels, and a photo of the damaged wheel is required to process the replacement. Drive with confidence, we’ve got you covered.

Driven. Tested. Approved.

Hear from drivers who’ve made the switch to forged performance.

A bold 22 inch forged setup for Tesla Model S/X.

The AW11 uses a sharp multi-spoke face to give Model S and Model X a more technical, performance-focused stance.
22x9.0 +35 and 22x10 +35 widths support Model X staggered planning and Model S square-fitment planning.
Approximate wheel weights are 31.1 lbs front and 32.4 lbs rear, with normal manufacturing tolerance.
Forged from 6061-T6 aluminum, CNC machined, and rated at 900 KG per wheel.
Tesla-ready 5x120 PCD and 64.1 mm hub-centric fitment work with OEM lug nuts and TPMS sensors; use a thin-wall socket.

Specifications:

Application Tesla Model S/X, confirm model year and final setup before ordering
Size and weight 22x9.0 +35 ~31.1 lbs
Offset +35
PCD (Bolt Pattern) 5x120
Center Bore 64.1 mm hub-centric
Construction Forged 6061-T6 Aluminum
Load Rating 900 KG (1985 lbs)
Finish Gunmetal
Note Listed weights are approximate and may vary by up to 1-1.5 lbs due to normal manufacturing tolerances.

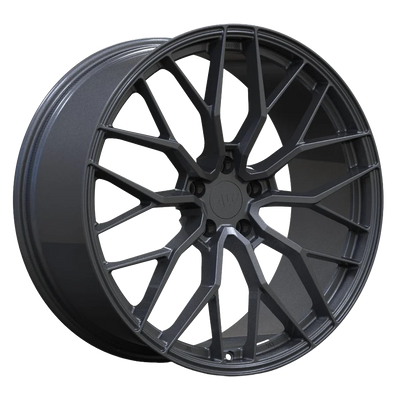

AW11 Gunmetal forged wheel transparent render

Why AW11 works for Model S/X

AW11 combines a high-detail forged face with two 22 inch widths for Model S/X setup planning.
The angular multi-spoke design adds visual depth without hiding the wheel's performance intent. For Model X, pair 22x9.0 front wheels with 22x10 rear wheels for the intended staggered setup. Model S owners can plan a square 22 inch setup; confirm the final wheel and tire combination before ordering. Gunmetal keeps the design technical and understated while still showing the spoke contours. OEM lug nuts and TPMS sensors are compatible; a thin-wall socket helps protect the narrower lug openings.

AW11 details for Tesla Model S/X

Forged construction, Model S/X fitment, FEA context, and the angular AW11 design.

AW11 in Real-World Use

A real vehicle photo shows how the AW11 multi-spoke face changes the Model X stance outside the studio.

Angular Multi-Spoke Design

The straight-on view shows the layered spoke geometry, open brake visibility, and Gunmetal finish.

Forged 6061-T6 Aluminum

A forged billet and precision CNC machining create the detailed AW11 face with a 900 KG load rating.

FEA-Validated Design

Finite Element Analysis is used to evaluate load paths and identify stress concentration before production.

Tesla-Ready Fitment

5x120 PCD, 64.1 mm hub-centric bore, OEM lug nut compatibility, and OEM TPMS compatibility simplify installation.

Tire Fitment Guide

AW11 Tesla Model S/X 22 inch recommended tire sizes.
Wheel Size Tesla Model S Tesla Model X
22x9.0 +35 255/30R22 265/35R22
22x10 +35 295/25R22 275/35R22
22x10 +35 Alt. - 285/35R22

Position: 22x9.0 is the front / square width; 22x10 is square on Model S or rear on Model X. For Model X staggered fitment, add two 22x9.0" wheels and two 22x10" wheels. Confirm the final Model S setup before ordering a mounted tire package.

Availability

If you see the "Add To Cart" button, it means our inventory is fully stocked, ensuring prompt delivery. Expect your items to be on their way within two business days after you've made your purchase.

Features

  • All Atomic Wheels are covered by our lifetime structural warranty.
  • Each set comes with color-matched Atomic Wheels center caps.

Please note: The price displayed is for one unit; four must be added to the cart to purchase a set of four.

Custom order

If the design or size you are looking for is not available, we are pleased to offer you the option to create a custom order.

This allows you to tailor your wheels to your specific preferences and needs. We also provide a wide range of color options to ensure that your wheels perfectly match your vision.

More details

FAQ

What is the difference between a forged rim and a flow-formed rim?

The main difference between forged and flow-formed rims lies in their manufacturing processes and materials. Forged rims, made from 6061-T6 aluminum, are formed under extreme pressure and then precisely machined using CNC technology, resulting in ultra-strong, lightweight wheels ideal for high performance. Flow-formed rims, also known as spin-formed, start with a cast mold and are shaped using hydraulic pressure and rotation. This enhances the strength of cast rims while maintaining a more affordable price point, offering a solid balance of performance and cost.

Where do you make the wheels?

The factory where we manufacture the rims is in China. They are made with state-of-the-art technology, subjected to rigorous safety and quality control processes.

Do you ship outside of the United States?

Yes, we ship worldwide. However, purchasing a rim in stock can be expensive due to shipping costs. Therefore, we recommend placing a custom order where items are shipped directly from the factory to reduce costs. In this way you will get the same price worldwide, because the rims will be delivered from the factory.

What Tire Sizes Do You Recommend for Installing Your Rims?

We recommend sticking with OEM sizes for the best performance and fit. However, there is often some room for alternatives based on your specific needs and preferences. We’re happy to help with any questions and guide you in choosing the best tire size for your setup.

What Are Your Cancellation Policies if I Want a Refund on My Pre-Order?

If you’ve made a pre-order payment, you can cancel your order and request a refund at any time before the shipment is processed.

How Long Does It Take to Receive an Order After Making a Purchase?

We ship orders twice a week on Tuesdays and Fridays using UPS Ground. Typically, it takes 2-5 business days for wheels to be delivered after shipment.

Can I Pick Up the Rims Directly if I’m Near Your Location?

Yes, you can pick up the rims directly if you’re near our location. Please note that Texas sales tax will be applied to in-state sales.

Are Your Center Caps Compatible with the OEM Ones?

Most of our center caps are 65mm, so they are not compatible with the OEM center caps.
