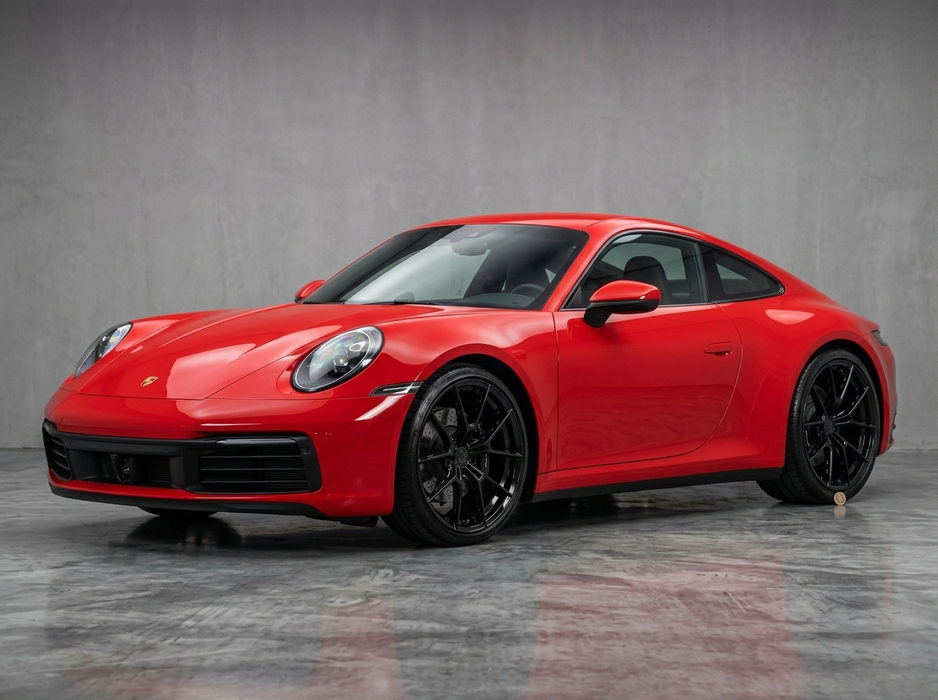

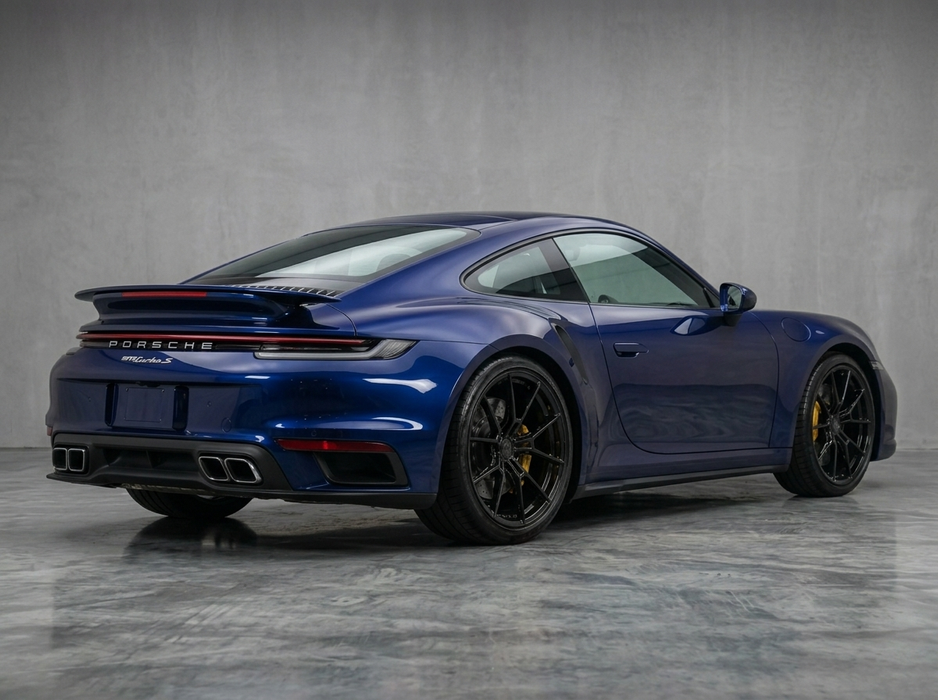

AWS Forged Wheels for Porsche 911 (992)

AWS Forged Wheels for Porsche 911 (992)

Fits yourPorsche 911 (992)
$859.00 - $909.00
$859.00
$859.00 - $909.00
$859.00
0% Restocking Fee
Diameter: 20"
Size: 9" +31
Color: Gloss Black

Please note: The price displayed is for one unit; four must be added to the cart to purchase a set of four.

Atomic Wheels Lifetime Warranty

We offer a lifetime structural warranty for your peace of mind.

Fully Forged Wheels

Our wheels are crafted from premium 6061-T6 forged aluminum and engineered to exceed industry standards, ensuring exceptional performance and durability.

Accidental Damage Replacement

Street damage, road hazards, or unexpected mishaps, it happens to the best of us. Atomic Wheels supports every driver with 50% off a replacement forged wheel when the unexpected occurs. This program is limited to one full set, up to 4 wheels total, per customer and applies exclusively to forged wheels, and a photo of the damaged wheel is required to process the replacement. Drive with confidence, we’ve got you covered.

Driven. Tested. Approved.

Hear from drivers who’ve made the switch to forged performance.

Skeleton-Spoke Forged. Built for Porsche 911.

The AWS is Atomic Wheels' skeleton-spoke forged wheel for the Porsche 911 (992), built for a sharper motorsport look with open brake visibility.
5-Lug Carrera setup: 20×9.0 +31 front and 21×11.5 +57 rear, 5×130 PCD with 71.6 mm center bore.
Center-Lock setup: 20×9.5 +37 front and 21×12 +60 rear, single-nut center-lock with 84 mm center bore.
Forged 6061-T6 aluminum, Porsche TPMS compatibility, knurled bead seat, and per-wheel load ratings from 800 KG to 900 KG depending on fitment.
Listed weights run from 23.6 lbs front to 29.7 lbs rear; choose the matched front/rear pair for your hub type before ordering.

Specifications:

Application Porsche 911 (992)
Position Front
Size and weight 20×9.0 +31, approx. 23.6 lbs (10.7 kg)
Offset +31
PCD (Bolt Pattern) 5×130
Center Bore 71.6 mm
Construction Forged 6061-T6 Aluminum
Load Rating 800 KG (1764 lbs)

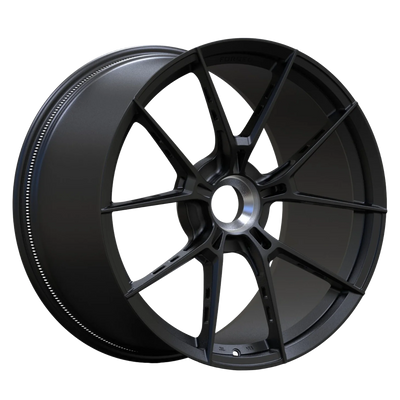

AWS Satin Black clean render

Insights

Meet the AWS — a skeleton-spoke forged 20/21-inch setup for Porsche 911 (992).
AWS is built for 992 owners who want a more aggressive forged look than a classic split-spoke wheel: deep skeletal windows, sharp spoke edges, and strong brake visibility. The active lineup is intentionally focused: one 5-lug staggered pair and one center-lock staggered pair, so customers do not mix incompatible Porsche hub types. The 5-lug setup uses 20×9.0 +31 front and 21×11.5 +57 rear sizing. The center-lock setup uses 20×9.5 +37 front and 21×12 +60 rear sizing. Forged 6061-T6 construction, knurled bead seats, hub-centric machining, and color-matched center caps make AWS a clean performance upgrade for a modern 911.

Built for Porsche 911 (992) Drivers

Forged skeleton-spoke design. 5×130 and center-lock. Gloss Black · Satin Black.

AWS Skeleton-Spoke Porsche Fitment

AWS gives the 992 a sharper skeleton-spoke forged face with deep cuts, high brake visibility, and a lightweight motorsport look.

Forged 6061-T6 Construction

Each AWS is CNC-machined from forged 6061-T6 aluminum for high strength, precise fitment, and lower rotating mass than a typical cast wheel.

FEA-Validated Strength

AWS is checked with finite element analysis before production, validating spoke, barrel, and hub loads for real Porsche 911 use.

Knurled Bead Seat

A knurled bead seat helps reduce tire slip under hard braking, acceleration, and high-speed direction changes.

5-Lug and Center-Lock Coverage

AWS covers both 992 hub families: 5×130 / 71.6 mm for Carrera-style fitments and center-lock / 84 mm for GT3 and Turbo S setups.

Staggered 20/21-Inch Setup

The active AWS Porsche 911 lineup pairs 20-inch front wheels with 21-inch rears for a balanced staggered 992 stance.

Tire Fitment Guide

AWS Porsche 911 (992) staggered tire reference — 5-lug and center-lock.
Application Wheel Size Tire Reference
5-Lug Front 20×9.0 +31 245/35R20255/35R20
5-Lug Rear 21×11.5 +57 305/30R21315/30R21
Center-Lock Front 20×9.5 +37 265/35R20275/35R20
Center-Lock Rear 21×12 +60 315/30R21325/30R21

AWS is offered as two matched staggered Porsche 911 (992) packages: 5-lug 5×130 / 71.6 mm and center-lock / 84 mm. Do not mix 5-lug and center-lock sizes. Confirm exact model, hub type, suspension, and tire choice before mounting.

Availability

If you see the "Add To Cart" button, it means our inventory is fully stocked, ensuring prompt delivery. Expect your items to be on their way within two business days after you've made your purchase.

Features

  • All Atomic Wheels are covered by our lifetime structural warranty.
  • Each set comes with color-matched Atomic Wheels center caps.

Please note: The price displayed is for one unit; four must be added to the cart to purchase a set of four.

Custom order

If the design or size you are looking for is not available, we are pleased to offer you the option to create a custom order.

This allows you to tailor your wheels to your specific preferences and needs. We also provide a wide range of color options to ensure that your wheels perfectly match your vision.

More details

FAQ

What is the difference between a forged rim and a flow-formed rim?

The main difference between forged and flow-formed rims lies in their manufacturing processes and materials. Forged rims, made from 6061-T6 aluminum, are formed under extreme pressure and then precisely machined using CNC technology, resulting in ultra-strong, lightweight wheels ideal for high performance. Flow-formed rims, also known as spin-formed, start with a cast mold and are shaped using hydraulic pressure and rotation. This enhances the strength of cast rims while maintaining a more affordable price point, offering a solid balance of performance and cost.

Where do you make the wheels?

The factory where we manufacture the rims is in China. They are made with state-of-the-art technology, subjected to rigorous safety and quality control processes.

Do you ship outside of the United States?

Yes, we ship worldwide. However, purchasing a rim in stock can be expensive due to shipping costs. Therefore, we recommend placing a custom order where items are shipped directly from the factory to reduce costs. In this way you will get the same price worldwide, because the rims will be delivered from the factory.

What Tire Sizes Do You Recommend for Installing Your Rims?

We recommend sticking with OEM sizes for the best performance and fit. However, there is often some room for alternatives based on your specific needs and preferences. We’re happy to help with any questions and guide you in choosing the best tire size for your setup.

What Are Your Cancellation Policies if I Want a Refund on My Pre-Order?

If you’ve made a pre-order payment, you can cancel your order and request a refund at any time before the shipment is processed.

How Long Does It Take to Receive an Order After Making a Purchase?

We ship orders twice a week on Tuesdays and Fridays using UPS Ground. Typically, it takes 2-5 business days for wheels to be delivered after shipment.

Can I Pick Up the Rims Directly if I’m Near Your Location?

Yes, you can pick up the rims directly if you’re near our location. Please note that Texas sales tax will be applied to in-state sales.

Are Your Center Caps Compatible with the OEM Ones?

Most of our center caps are 65mm, so they are not compatible with the OEM center caps.
