AW10 Forged Wheels for Rivian R2

AW10 Forged Wheels for Rivian R2

Fits your Rivian R2
Confirm your exact year, generation, and trim before ordering. Fits only Rivian R2 as listed. The same model name from another generation may use a different bolt pattern, center bore, offset, brake clearance, or load requirement.
$640.00 - $765.00
$640.00 each $2,560.00 set of 4
$640.00 - $765.00
$640.00 each $2,560.00 set of 4
0% Restocking Fee
No restocking fee is charged on eligible returns. Return shipping, used or installed items, and custom-built orders may still have exclusions, so contact us before sending anything back.
Diameter: 18"
Size: 8.5" +38
Color: Satin Black

This wheel design, color, and size is not part of our regular in-stock program. However, you can purchase it at the price listed above, with direct delivery to your address. Please note, as this is a build-to-order product, the production and delivery process will take approximately 8-10 weeks from the date of your order.

Build-to-Order purchases may be cancelled within 48 hours of payment. Once production begins, the order is final and non-refundable.

Atomic Wheels Lifetime Warranty

We offer a lifetime structural warranty for your peace of mind.

Fully Forged Wheels

Our wheels are crafted from premium 6061-T6 forged aluminum and engineered to exceed industry standards, ensuring exceptional performance and durability.

Accidental Damage Replacement

Street damage, road hazards, or unexpected mishaps, it happens to the best of us. Atomic Wheels supports every driver with 50% off a replacement forged wheel when the unexpected occurs. This program is limited to one full set, up to 4 wheels total, per customer and applies exclusively to forged wheels, and a photo of the damaged wheel is required to process the replacement. Drive with confidence, we’ve got you covered.

Three forged sizes. One clean Rivian R2 fitment.

The AW10 brings its squared split-spoke face to the Rivian R2 in a direct, hub-centric forged fitment.
Choose 18x8.5 +38, 19x8.5 +38, or 20x8.5 +38 around the tire sidewall and stance you want.
Approximate wheel weights are 27.1 lbs, 28.7 lbs, and 27.9 lbs respectively, with normal manufacturing tolerance.
Forged from 6061-T6 aluminum, JWL-VIA certified, and rated at 1,000 KG (2,205 lbs) per wheel.
Rivian-ready 5x114.3 PCD and 64.1 mm center bore work with OEM lug nuts and TPMS sensors; use a thin-wall socket.

Specifications:

Application Rivian R2, all trims and all years
Size and weight 18x8.5 +38 ~ 27.1 lbs
Offset +38
PCD (Bolt Pattern) 5x114.3
Center Bore 64.1 mm
Construction Forged 6061-T6 Aluminum
Load Rating 1,000 KG (2,205 lbs)
Certification JWL-VIA
Note All listed weights are approximate and may vary due to normal manufacturing tolerances, with possible differences of up to 1-1.5 lbs.

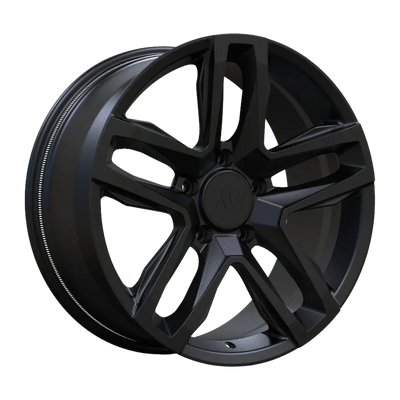

AW10 Satin Black forged wheel transparent specification render

Why AW10 works for Rivian R2

One +38 forged fitment across three diameters makes the decision about sidewall, stance, and finish.
The 18-inch option prioritizes tire sidewall, the 19-inch option balances sidewall and wheel presence, and the 20-inch option delivers the largest visual footprint. A shared 8.5-inch width and +38 offset keep the fitment logic consistent across the three diameters. Lower wheel mass reduces unsprung weight; choose the final wheel and tire package around ride comfort, efficiency, and the driving surfaces you use most. Satin Black, Gloss Black, Satin Smoke Bronze, and Titan let the same AW10 face move from understated to high-contrast without changing fitment. OEM lug-nut and TPMS compatibility keeps installation straightforward, while the lifetime structural warranty supports long-term ownership.

Engineered for Rivian R2

AW10 design, forged construction, FEA validation, and R2-ready fitment details.

AW10 Rivian Design

The squared split-spoke face gives the Rivian platform a clean forged look with strong visual depth.

Forged 6061-T6 Aluminum

A forged billet and precision CNC machining create the detailed AW10 face with a 1,000 KG R2 load rating.

FEA-Validated Design

Finite Element Analysis evaluates load paths and stress concentration before production machining.

Knurled Bead Seat

The knurled bead seat helps reduce tire slip during hard acceleration, braking, and changing surface loads.

Lightweight Hub Machining

Hub-side machining removes unnecessary mass while preserving the forged structure and load target.

Rivian R2-Ready Fitment

5x114.3 PCD, 64.1 mm hub-centric bore, OEM lug nuts, and OEM TPMS compatibility simplify installation.

Tire Fitment Guide

Rivian R2 18x8.5 +38: tire sizes compared with stock 255/60R20.
Wheel Size Setup / Diameter Change Tire Size
18x8.5 +38 Stock-diameter match (+0.02%) 255/70R18
18x8.5 +38 Wider option (+0.09%) - fitment check required 275/65R18
18x8.5 +38 Oversize option (+3.46%) - fitment check required 275/70R18

Stock reference: 255/60R20 = 814.0 mm calculated diameter; stock 255/55R21 = 813.9 mm. The published R2 Standard 19-inch size, 255/65R19, calculates to 814.1 mm. Percentage changes use stock 255/60R20 as the reference. These are nominal size calculations; actual tire dimensions vary by model.

Rivian does not offer a factory 18-inch R2 wheel. 255/70R18 is an aftermarket size with a calculated diameter of 814.2 mm, close to stock. 275/65R18 is 814.7 mm; 275/70R18 is 842.2 mm and needs additional clearance. Both wider sizes are options to assess with an installer, not confirmed fitments for every tire model.

265/65R18 is smaller than stock: 801.7 mm (-1.51%). It also has a shorter sidewall than 255/70R18, so it is not listed as a taller-sidewall upgrade.

Before ordering, confirm the exact tire model is approved for an 8.5-inch rim and meets your vehicle's load and speed requirements. For any size change, have your installer check brake, suspension and body clearance at full steering lock and suspension compression, and confirm the correct inflation pressure and vehicle settings. A similar calculated diameter does not guarantee fitment, range or speedometer accuracy.

Availability

This wheel design, color, and size is not part of our regular in-stock program. However, you can purchase it at the price listed above, with direct delivery to your address. Please note, as this is a build-to-order product, the production and delivery process will take approximately 8-10 weeks from the date of your order.

Build-to-Order purchases may be cancelled within 48 hours of payment. Once production begins, the order is final and non-refundable.

Features

  • All Atomic Wheels are covered by our lifetime structural warranty.
  • Each set comes with color-matched Atomic Wheels center caps.

Custom order

If the design or size you are looking for is not available, we are pleased to offer you the option to create a custom order.

This allows you to tailor your wheels to your specific preferences and needs. We also provide a wide range of color options to ensure that your wheels perfectly match your vision.

More details

FAQ

What is the difference between a forged rim and a flow-formed rim?

The main difference between forged and flow-formed rims lies in their manufacturing processes and materials. Forged rims, made from 6061-T6 aluminum, are formed under extreme pressure and then precisely machined using CNC technology, resulting in ultra-strong, lightweight wheels ideal for high performance. Flow-formed rims, also known as spin-formed, start with a cast mold and are shaped using hydraulic pressure and rotation. This enhances the strength of cast rims while maintaining a more affordable price point, offering a solid balance of performance and cost.

Where do you make the wheels?

The factory where we manufacture the rims is in China. They are made with state-of-the-art technology, subjected to rigorous safety and quality control processes.

Do you ship outside of the United States?

Yes, we ship worldwide. However, purchasing a rim in stock can be expensive due to shipping costs. Therefore, we recommend placing a custom order where items are shipped directly from the factory to reduce costs. In this way you will get the same price worldwide, because the rims will be delivered from the factory.

What Tire Sizes Do You Recommend for Installing Your Rims?

We recommend sticking with OEM sizes for the best performance and fit. However, there is often some room for alternatives based on your specific needs and preferences. We’re happy to help with any questions and guide you in choosing the best tire size for your setup.

What Are Your Cancellation Policies if I Want a Refund on My Pre-Order?

If you’ve made a pre-order payment, you can cancel your order and request a refund at any time before the shipment is processed.

How Long Does It Take to Receive an Order After Making a Purchase?

We ship orders twice a week on Tuesdays and Fridays using UPS Ground. Typically, it takes 2-5 business days for wheels to be delivered after shipment.

Can I Pick Up the Rims Directly if I’m Near Your Location?

Yes, you can pick up the rims directly if you’re near our location. Please note that Texas sales tax will be applied to in-state sales.

Are Your Center Caps Compatible with the OEM Ones?

Most of our center caps are 65mm, so they are not compatible with the OEM center caps.
