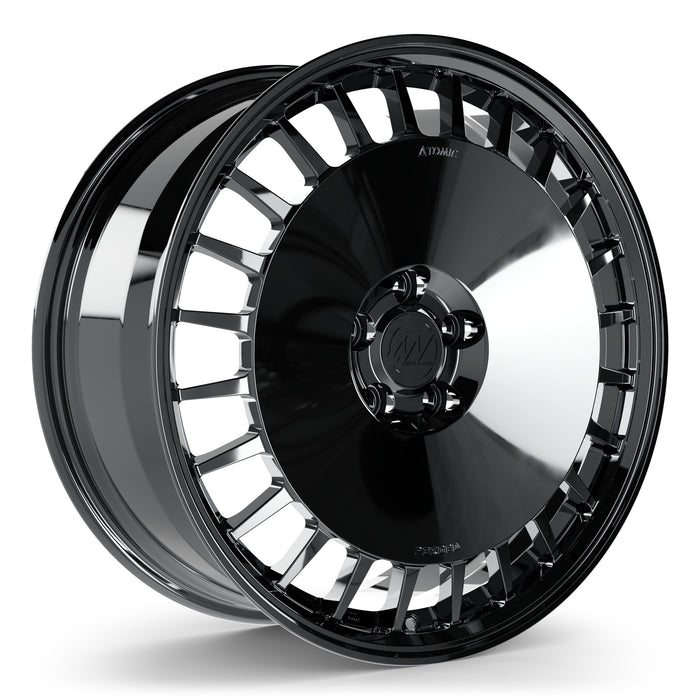

AWDX Forged Wheels for Rivian R2

AWDX Forged Wheels for Rivian R2

Fits your Rivian R2
Confirm your exact year, generation, and trim before ordering. Fits only Rivian R2 as listed. The same model name from another generation may use a different bolt pattern, center bore, offset, brake clearance, or load requirement.
$640.00 - $765.00
$640.00 each $2,560.00 set of 4
$640.00 - $765.00
$640.00 each $2,560.00 set of 4
0% Restocking Fee
No restocking fee is charged on eligible returns. Return shipping, used or installed items, and custom-built orders may still have exclusions, so contact us before sending anything back.
Diameter: 18"
Size: 8.5" +38
Color: Satin Black
Partial payment: 50% deposit

Enjoy an extra 10% off at checkout with our Early Bird Pre-Order. This discount stacks with any other active coupons.

Estimated shipping: November 15, 2026 (approximately 90 days). A 50% deposit is charged today. The remaining balance is charged when the order is fulfilled after inventory arrives.

Atomic Wheels Lifetime Warranty

We offer a lifetime structural warranty for your peace of mind.

Fully Forged Wheels

Our wheels are crafted from premium 6061-T6 forged aluminum and engineered to exceed industry standards, ensuring exceptional performance and durability.

Accidental Damage Replacement

Street damage, road hazards, or unexpected mishaps, it happens to the best of us. Atomic Wheels supports every driver with 50% off a replacement forged wheel when the unexpected occurs. This program is limited to one full set, up to 4 wheels total, per customer and applies exclusively to forged wheels, and a photo of the damaged wheel is required to process the replacement. Drive with confidence, we’ve got you covered.

Three forged sizes. One aero-forward Rivian R2 fitment.

The AWDX brings its closed aero face and sculpted perimeter vents to the Rivian R2 in a direct, hub-centric forged fitment.
Choose 18x8.5 +38, 19x8.5 +38, or 20x8.5 +38 around the tire sidewall and stance you want.
Approximate wheel weights are 25.9 lbs, 27.5 lbs, and 29.1 lbs respectively, with normal manufacturing tolerance.
Forged from 6061-T6 aluminum, JWL-VIA certified, and rated at 1,000 KG (2,205 lbs) per wheel.
Rivian-ready 5x114.3 PCD and 64.1 mm center bore work with OEM lug nuts and TPMS sensors; use a thin-wall socket.

Specifications:

Application Rivian R2, all trims and all years
Size and weight 18x8.5 +38 ~ 25.9 lbs
Offset +38
PCD (Bolt Pattern) 5x114.3
Center Bore 64.1 mm
Construction Forged 6061-T6 Aluminum
Load Rating 1,000 KG (2,205 lbs)
Certification JWL-VIA
Note All listed weights are approximate and may vary due to normal manufacturing tolerances, with possible differences of up to 1-1.5 lbs.

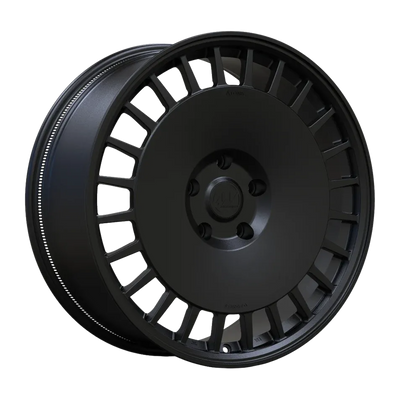

AWDX Satin Black forged wheel transparent specification render

Why AWDX works for Rivian R2

A distinctive closed-face forged design with one +38 fitment across three diameters.
The closed center gives AWDX a strong aero-inspired identity, while the perimeter vents add depth and keep the face from reading flat. A shared 8.5-inch width and +38 offset keep fitment logic consistent: choose 18 inches for more sidewall, 19 inches for balance, or 20 inches for the largest visual footprint. Lower wheel mass reduces unsprung weight; choose the final wheel and tire package around ride comfort, efficiency, and the surfaces you use most. Satin Black, Gloss Black, Satin Smoke Bronze, and Titan move the AWDX from understated to high-contrast without changing fitment. OEM lug-nut and TPMS compatibility keeps installation straightforward, while the lifetime structural warranty supports long-term ownership.

Engineered for Rivian R2

AWDX design, forged construction, FEA validation, and R2-ready fitment details.

AWDX Rivian Design

The closed aero face and sculpted perimeter vents give the Rivian platform a distinctive forged look with strong visual depth.

Forged 6061-T6 Aluminum

A forged billet and precision CNC machining create the detailed AWDX profile with a 1,000 KG R2 load rating.

FEA-Validated Design

Finite Element Analysis evaluates load paths and stress concentration before production machining.

Knurled Bead Seat

The knurled bead seat helps reduce tire slip during hard acceleration, braking, and changing surface loads.

Lightweight Hub Machining

Hub-side machining removes unnecessary mass while preserving the forged structure and load target.

Rivian R2-Ready Fitment

5x114.3 PCD, 64.1 mm hub-centric bore, OEM lug nuts, and OEM TPMS compatibility simplify installation.

Tire Fitment Guide

AWDX Rivian R2 18x8.5 +38 recommended tire sizes.
Wheel Size Setup Rivian R2
18x8.5 +38 OEM diameter 255/70R18
18x8.5 +38 Approved alternative 265/65R18

The Rivian R2 is not offered with a factory 18-inch wheel. 255/70R18 matches OEM rolling diameter, while 265/65R18 is the wider sidewall-focused alternative. Confirm brake-caliper clearance before fitting.

Availability

If you see the "Add To Cart" button, it means our inventory is fully stocked, ensuring prompt delivery. Expect your items to be on their way within two business days after you've made your purchase.

Features

  • All Atomic Wheels are covered by our lifetime structural warranty.
  • Each set comes with color-matched Atomic Wheels center caps.

Custom order

If the design or size you are looking for is not available, we are pleased to offer you the option to create a custom order.

This allows you to tailor your wheels to your specific preferences and needs. We also provide a wide range of color options to ensure that your wheels perfectly match your vision.

More details

FAQ

What is the difference between a forged rim and a flow-formed rim?

The main difference between forged and flow-formed rims lies in their manufacturing processes and materials. Forged rims, made from 6061-T6 aluminum, are formed under extreme pressure and then precisely machined using CNC technology, resulting in ultra-strong, lightweight wheels ideal for high performance. Flow-formed rims, also known as spin-formed, start with a cast mold and are shaped using hydraulic pressure and rotation. This enhances the strength of cast rims while maintaining a more affordable price point, offering a solid balance of performance and cost.

Where do you make the wheels?

The factory where we manufacture the rims is in China. They are made with state-of-the-art technology, subjected to rigorous safety and quality control processes.

Do you ship outside of the United States?

Yes, we ship worldwide. However, purchasing a rim in stock can be expensive due to shipping costs. Therefore, we recommend placing a custom order where items are shipped directly from the factory to reduce costs. In this way you will get the same price worldwide, because the rims will be delivered from the factory.

What Tire Sizes Do You Recommend for Installing Your Rims?

We recommend sticking with OEM sizes for the best performance and fit. However, there is often some room for alternatives based on your specific needs and preferences. We’re happy to help with any questions and guide you in choosing the best tire size for your setup.

What Are Your Cancellation Policies if I Want a Refund on My Pre-Order?

If you’ve made a pre-order payment, you can cancel your order and request a refund at any time before the shipment is processed.

How Long Does It Take to Receive an Order After Making a Purchase?

We ship orders twice a week on Tuesdays and Fridays using UPS Ground. Typically, it takes 2-5 business days for wheels to be delivered after shipment.

Can I Pick Up the Rims Directly if I’m Near Your Location?

Yes, you can pick up the rims directly if you’re near our location. Please note that Texas sales tax will be applied to in-state sales.

Are Your Center Caps Compatible with the OEM Ones?

Most of our center caps are 65mm, so they are not compatible with the OEM center caps.
