AWR1 Forged Wheels for Rivian R1T/R1S

AWR1 Forged Wheels for Rivian R1T/R1S

Fits yourRivian R1T/R1S
$880.00 - $980.00
$880.00
$880.00 - $980.00
$880.00
0% Restocking Fee
Diameter: 20"
Size: 8.5" +40
Color: Satin Black/Grey Blade/Yellow Lines

Please note: The price displayed is for one unit; four must be added to the cart to purchase a set of four.

Atomic Wheels Lifetime Warranty

We offer a lifetime structural warranty for your peace of mind.

Fully Forged Wheels

Our wheels are crafted from premium 6061-T6 forged aluminum and engineered to exceed industry standards, ensuring exceptional performance and durability.

Accidental Damage Replacement

Street damage, road hazards, or unexpected mishaps, it happens to the best of us. Atomic Wheels supports every driver with 50% off a replacement forged wheel when the unexpected occurs. This program is limited to one full set, up to 4 wheels total, per customer and applies exclusively to forged wheels, and a photo of the damaged wheel is required to process the replacement. Drive with confidence, we’ve got you covered.

Driven. Tested. Approved.

Hear from drivers who’ve made the switch to forged performance.

Range-Ready. Trail-Strong.

The AWR1 is a forged wheel for Rivian R1T and R1S drivers who want a stronger, cleaner setup without losing everyday EV-truck usability.
Engineered for Rivian R1S and R1T, all years and all trims, the AWR1 blends purposeful styling with load-rated forged construction.
Available fitments include 20×8.5 +40, 22×8.5 +40, using a 5x139.7 bolt pattern, 64.1 mm center bore, and a 2580 lb load rating.
Compatible with Rivian OEM lug nuts and TPMS sensors. A thin-wall socket is recommended because the lug nut pockets are intentionally tight around the hardware.
Covered by the Atomic Wheels lifetime structural warranty, with each wheel supplied with a color-matched 90 mm Atomic Wheels center cap machined from solid aluminum.

Range-Ready. Trail-Strong.

The AWR1 is a forged wheel for Rivian R1T and R1S drivers who want a stronger, cleaner setup without losing everyday EV-truck usability.
Engineered for Rivian R1S and R1T, all years and all trims, the AWR1 blends purposeful styling with load-rated forged construction.
Available fitments include 20×8.5 +40, 22×8.5 +40, using a 5x139.7 bolt pattern, 64.1 mm center bore, and a 2580 lb load rating.
Compatible with Rivian OEM lug nuts and TPMS sensors. A thin-wall socket is recommended because the lug nut pockets are intentionally tight around the hardware.
Covered by the Atomic Wheels lifetime structural warranty, with each wheel supplied with a color-matched 90 mm Atomic Wheels center cap machined from solid aluminum.

Specifications:

Application Rivian R1S and Rivian R1T, all years and all trims
Size 20×8.5 +40
Offset +40
PCD (Bolt Pattern) 5×139.7
Center Bore 64.1 mm
Construction Forged 6061-T6 Aluminum
Load Rating 1170 KG (2580 lbs)

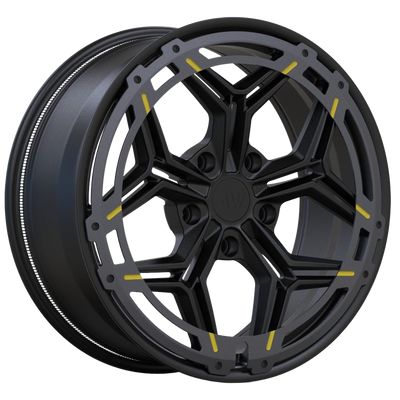

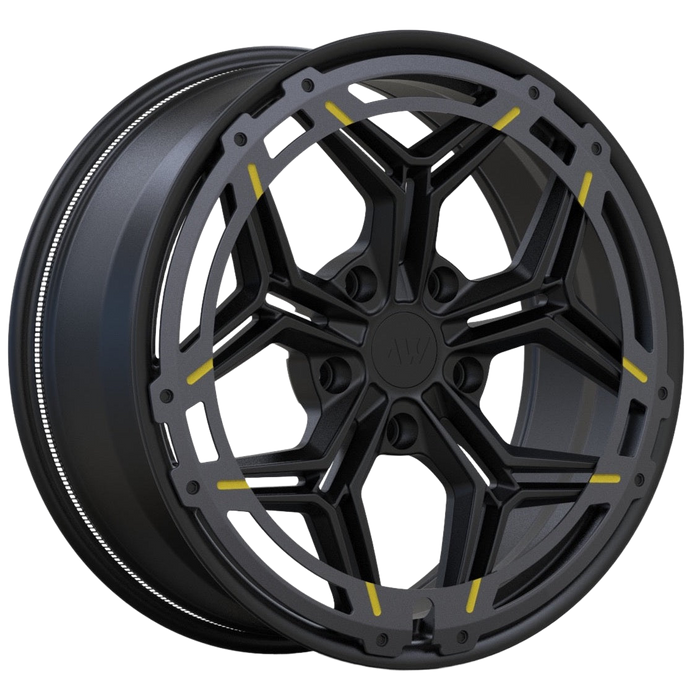

AWR1 Satin Black/Grey Blade/Yellow Lines forged wheel for Rivian, transparent background

Insights

Meet the AWR1, a forged Rivian R1T/R1S wheel built for real-world EV-truck use, practical tire planning, and clean fitment.
The AWR1 gives Rivian R1T and R1S owners a forged wheel option with a clear design personality while keeping the build natural on an EV truck. The 20-inch setup keeps tire planning practical: stay close to OEM diameter or choose a 275/60R20 efficiency-focused setup when range and tire availability matter. Each AWR1 Rivian fitment is selected around load capacity, brake clearance, OEM TPMS compatibility, and everyday usability across commuting, road trips, and light trail use. Finish choice changes the visual character of the build, but the Rivian fitment foundation stays consistent, so the decision can stay focused on stance and style.

Engineered for Rivian performance

Rally-inspired forged design. FEA validation. R1T/R1S-ready details.

AWR1 Rivian Design

AWR1 gives the Rivian R1T/R1S a distinct forged look while keeping truck-ready stance and fitment precision at the center.

Forged for Power

Forged 6061-T6 aluminum is machined into the final AWR1 profile for strength, precision, and lower unsprung weight.

Tested to Perfection

Finite Element Analysis (FEA) helps simulate potholes, heavy loads, and road stress before production, so the wheel is ready for real-world Rivian use.

Knurled Bead Seat

The AWR1 includes a knurled bead seat that helps keep the tire seated under hard braking, acceleration, and load changes.

Lightweight Hub Construction

The back pad and hub area are machined to remove excess material while preserving the 1170 KG load rating Rivian fitment requires.

Rivian-Ready Fitment

AWR1 fitments are built around Rivian R1T/R1S hardware, OEM TPMS compatibility, 64.1 mm center bore, and clean real-world stance.

Tire Fitment Guide Rivian R1T/R1S

Recommended tire sizes for AWR1 Rivian fitments:
Wheel Size Setup Rivian R1T Rivian R1S
20×8.5 +40 OEM diameter 275/65R20 275/65R20
20×8.5 +40 Efficiency alternative 275/60R20 275/60R20
22×8.5 +40 OEM diameter 275/50R22 275/50R22

For an efficiency-focused alternative on 20-inch wheels, 275/60R20 closely matches the diameter of Rivian 21-inch OEM tires and usually does not require vehicle reprogramming.

Availability

If you see the "Add To Cart" button, it means our inventory is fully stocked, ensuring prompt delivery. Expect your items to be on their way within two business days after you've made your purchase.

Features

  • All Atomic Wheels are covered by our lifetime structural warranty.
  • Each set comes with color-matched Atomic Wheels center caps.

Please note: The price displayed is for one unit; four must be added to the cart to purchase a set of four.

Custom order

If the design or size you are looking for is not available, we are pleased to offer you the option to create a custom order.

This allows you to tailor your wheels to your specific preferences and needs. We also provide a wide range of color options to ensure that your wheels perfectly match your vision.

More details

FAQ

What is the difference between a forged rim and a flow-formed rim?

The main difference between forged and flow-formed rims lies in their manufacturing processes and materials. Forged rims, made from 6061-T6 aluminum, are formed under extreme pressure and then precisely machined using CNC technology, resulting in ultra-strong, lightweight wheels ideal for high performance. Flow-formed rims, also known as spin-formed, start with a cast mold and are shaped using hydraulic pressure and rotation. This enhances the strength of cast rims while maintaining a more affordable price point, offering a solid balance of performance and cost.

Where do you make the wheels?

The factory where we manufacture the rims is in China. They are made with state-of-the-art technology, subjected to rigorous safety and quality control processes.

Do you ship outside of the United States?

Yes, we ship worldwide. However, purchasing a rim in stock can be expensive due to shipping costs. Therefore, we recommend placing a custom order where items are shipped directly from the factory to reduce costs. In this way you will get the same price worldwide, because the rims will be delivered from the factory.

What Tire Sizes Do You Recommend for Installing Your Rims?

We recommend sticking with OEM sizes for the best performance and fit. However, there is often some room for alternatives based on your specific needs and preferences. We’re happy to help with any questions and guide you in choosing the best tire size for your setup.

What Are Your Cancellation Policies if I Want a Refund on My Pre-Order?

If you’ve made a pre-order payment, you can cancel your order and request a refund at any time before the shipment is processed.

How Long Does It Take to Receive an Order After Making a Purchase?

We ship orders twice a week on Tuesdays and Fridays using UPS Ground. Typically, it takes 2-5 business days for wheels to be delivered after shipment.

Can I Pick Up the Rims Directly if I’m Near Your Location?

Yes, you can pick up the rims directly if you’re near our location. Please note that Texas sales tax will be applied to in-state sales.

Are Your Center Caps Compatible with the OEM Ones?

Most of our center caps are 65mm, so they are not compatible with the OEM center caps.
