AWS Forged Wheels for Ford Mustang GT

AWS Forged Wheels for Ford Mustang GT

Fits your Ford Mustang GT
Confirm your exact year, generation, and trim before ordering. Fits only Ford Mustang GT as listed. The same model name from another generation may use a different bolt pattern, center bore, offset, brake clearance, or load requirement.
$859.00 - $859.00
$859.00 each $3,436.00 set of 4
$859.00 - $859.00
$859.00 each $3,436.00 set of 4
0% Restocking Fee
No restocking fee is charged on eligible returns. Return shipping, used or installed items, and custom-built orders may still have exclusions, so contact us before sending anything back.
Diameter: 20"
Size: 11" +24
Color: Satin Black

Atomic Wheels Lifetime Warranty

We offer a lifetime structural warranty for your peace of mind.

Fully Forged Wheels

Our wheels are crafted from premium 6061-T6 forged aluminum and engineered to exceed industry standards, ensuring exceptional performance and durability.

Accidental Damage Replacement

Street damage, road hazards, or unexpected mishaps, it happens to the best of us. Atomic Wheels supports every driver with 50% off a replacement forged wheel when the unexpected occurs. This program is limited to one full set, up to 4 wheels total, per customer and applies exclusively to forged wheels, and a photo of the damaged wheel is required to process the replacement. Drive with confidence, we’ve got you covered.

Skeleton-spoke forged stance for Ford Mustang GT.

The AWS gives Ford Mustang GT builds a lightweight skeleton-spoke profile with an open, aggressive visual character.
The listed staggered setup pairs 20x11 +24 front wheels with 20x11.5 +56 rears for confident turn-in and rear traction.
Each AWS wheel is CNC-machined from forged 6061-T6 aluminum for a strong, detailed structure without unnecessary mass.
Approximate weights of 24.7 lbs front and 24.9 lbs rear support responsive handling on the Mustang GT platform.
Ford-ready 5x114.3 PCD and 70.5 mm center bore retain OEM lug-nut and TPMS compatibility; use a thin-wall socket at installation.

Specifications:

Application Ford Mustang GT, Front position in the listed staggered setup
Size and weight 20x11 +24, approximately 24.7 lbs
Offset +24
PCD (Bolt Pattern) 5x114.3
Center Bore 70.5 mm
Construction Forged 6061-T6 Aluminum
Load Rating 750 KG (1,653 lbs)
Finish Satin Black

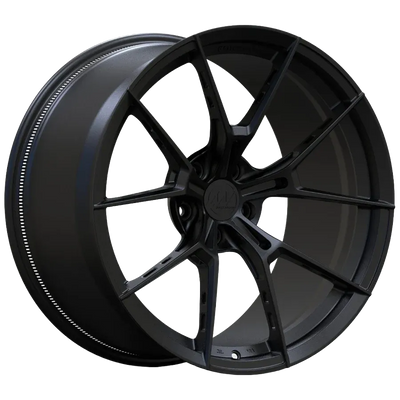

AWS forged wheel specification render in Satin Black

Why AWS Works for Ford Mustang GT

A forged 20-inch staggered setup shaped around Ford Mustang GT performance.
AWS gives the Mustang GT an unmistakably open skeleton-spoke profile, balancing a bold face with clean sightlines to the brakes. The listed 20x11 +24 front and 20x11.5 +56 rear pairing creates the staggered footprint this Mustang fitment is built around. 305/30R20 front and 315/30R20 rear tires complete the intended setup, pairing a wide contact patch with the 20-inch wheel diameter. Forged 6061-T6 construction and a 750 KG load rating provide the strength expected from a performance-focused Mustang wheel while helping reduce unsprung mass. OEM Ford lug-nut and TPMS compatibility keep installation simple; the narrower lug holes call for a thin-wall socket to protect the finish.

Built for Ford Mustang GT

AWS design, forged construction, bead retention, lightweight hub design, and Ford Mustang GT-specific fitment.

AWS Ford Mustang Design

The open skeleton-spoke face gives Ford Mustang GT builds a bold forged profile without overwhelming the car’s factory bodywork.

Forged 6061-T6 Aluminum

AWS begins as forged 6061-T6 aluminum, then is CNC-machined for precise Ford Mustang GT fitment with a strong, lightweight structure.

Knurled Bead Seat

A textured bead-seat surface helps resist tire slip under hard acceleration and braking.

Lightweight Hub Design

Strategically placed hub cutouts reduce material while preserving a secure, reliable connection to the vehicle.

Ford Mustang GT Fitment

The 5x114.3 PCD, 70.5 mm center bore, OEM Ford lug nuts, and TPMS compatibility support the listed Ford Mustang GT fitment.

Tire Fitment Guide

AWS Ford Mustang GT staggered setup recommended tire sizes.
Wheel Position Wheel Size Ford Mustang GT
Front 20x11 +24 305/30R20
Rear 20x11.5 +56 315/30R20

The listed 305/30R20 front and 315/30R20 rear tires are intended to be used together as a staggered Ford Mustang GT setup. Confirm tire, brake, suspension, and fender clearance before ordering or installation.

Availability

If you see the "Add To Cart" button, it means our inventory is fully stocked, ensuring prompt delivery. Expect your items to be on their way within two business days after you've made your purchase.

Features

  • All Atomic Wheels are covered by our lifetime structural warranty.
  • Each set comes with color-matched Atomic Wheels center caps.

Custom order

If the design or size you are looking for is not available, we are pleased to offer you the option to create a custom order.

This allows you to tailor your wheels to your specific preferences and needs. We also provide a wide range of color options to ensure that your wheels perfectly match your vision.

More details

FAQ

What is the difference between a forged rim and a flow-formed rim?

The main difference between forged and flow-formed rims lies in their manufacturing processes and materials. Forged rims, made from 6061-T6 aluminum, are formed under extreme pressure and then precisely machined using CNC technology, resulting in ultra-strong, lightweight wheels ideal for high performance. Flow-formed rims, also known as spin-formed, start with a cast mold and are shaped using hydraulic pressure and rotation. This enhances the strength of cast rims while maintaining a more affordable price point, offering a solid balance of performance and cost.

Where do you make the wheels?

The factory where we manufacture the rims is in China. They are made with state-of-the-art technology, subjected to rigorous safety and quality control processes.

Do you ship outside of the United States?

Yes, we ship worldwide. However, purchasing a rim in stock can be expensive due to shipping costs. Therefore, we recommend placing a custom order where items are shipped directly from the factory to reduce costs. In this way you will get the same price worldwide, because the rims will be delivered from the factory.

What Tire Sizes Do You Recommend for Installing Your Rims?

We recommend sticking with OEM sizes for the best performance and fit. However, there is often some room for alternatives based on your specific needs and preferences. We’re happy to help with any questions and guide you in choosing the best tire size for your setup.

What Are Your Cancellation Policies if I Want a Refund on My Pre-Order?

If you’ve made a pre-order payment, you can cancel your order and request a refund at any time before the shipment is processed.

How Long Does It Take to Receive an Order After Making a Purchase?

We ship orders twice a week on Tuesdays and Fridays using UPS Ground. Typically, it takes 2-5 business days for wheels to be delivered after shipment.

Can I Pick Up the Rims Directly if I’m Near Your Location?

Yes, you can pick up the rims directly if you’re near our location. Please note that Texas sales tax will be applied to in-state sales.

Are Your Center Caps Compatible with the OEM Ones?

Most of our center caps are 65mm, so they are not compatible with the OEM center caps.
