AWZZ Forged Wheels for BMW M3 E90/M3 F80

AWZZ Forged Wheels for BMW M3 E90/M3 F80

Fits your BMW M3 F80, BMW M3 E90, BMW M5 F10
Confirm your exact year, generation, and trim before ordering. Fits only BMW M3 F80, BMW M3 E90, BMW M5 F10 as listed. The same model name from another generation may use a different bolt pattern, center bore, offset, brake clearance, or load requirement.
$750.00 - $800.00
$750.00 each $3,000.00 set of 4
$750.00 - $800.00
$750.00 each $3,000.00 set of 4
0% Restocking Fee
No restocking fee is charged on eligible returns. Return shipping, used or installed items, and custom-built orders may still have exclusions, so contact us before sending anything back.
Diameter: 19"
Size: 9.5" +22
Color: Gloss Black
Visualizer

See AWZZ on your car

Drop in a photo of your car and see the AWZZ wheels on it in about ten seconds. No measuring, no guessing.

Your preview will appear here
Preview
100%
Compare finishes
Preview only — this is an approximate visualization. The real rims on your car may look slightly different in person. By generating a preview, you agree to our Terms & Conditions.

Atomic Wheels Lifetime Warranty

We offer a lifetime structural warranty for your peace of mind.

Fully Forged Wheels

Our wheels are crafted from premium 6061-T6 forged aluminum and engineered to exceed industry standards, ensuring exceptional performance and durability.

Accidental Damage Replacement

Street damage, road hazards, or unexpected mishaps, it happens to the best of us. Atomic Wheels supports every driver with 50% off a replacement forged wheel when the unexpected occurs. This program is limited to one full set, up to 4 wheels total, per customer and applies exclusively to forged wheels, and a photo of the damaged wheel is required to process the replacement. Drive with confidence, we’ve got you covered.

A lightweight forged staggered setup for BMW M3.

The AWZZ brings Atomic Wheels' lightest and best-selling split-spoke design to BMW M3 fitment.
Pair 19x9.5 +22 front wheels with 19x10.5 +22 rear wheels for the intended staggered setup.
Approximate weights are 21.8 lbs front and 23.9 lbs rear, with normal manufacturing tolerance.
Forged from 6061-T6 aluminum, CNC machined, and rated at 750 KG per wheel.
BMW-ready 5x120 PCD and 72.6 mm hub-centric fitment support OEM lug bolts and TPMS sensors; use a thin-wall socket.

Specifications:

Application BMW M3 E90/E92 and F80, front position in the staggered setup
Size and weight 19x9.5 +22 ~21.8 lbs
Offset +22
PCD (Bolt Pattern) 5x120
Center Bore 72.6 mm hub-centric
Construction Forged 6061-T6 Aluminum
Load Rating 750 KG (1654 lbs)
Finish Gloss Black
Note Listed weights are approximate and may vary by up to 1-1.5 lbs due to normal manufacturing tolerances.

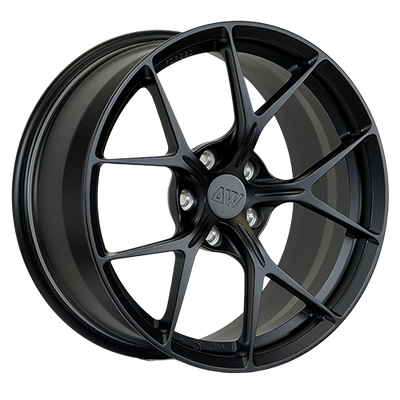

AWZZ Gloss Black forged wheel transparent specification render

Why this staggered M3 setup works

AWZZ combines two +22 widths, low forged-wheel weight, and BMW-specific geometry for E9X/F80 setup planning.
The 19x9.5 front and 19x10.5 rear widths create a purposeful staggered stance while keeping one consistent AWZZ design. At approximately 21.8 lbs front and 23.9 lbs rear, the setup keeps rotational and unsprung weight under control. The +22 offset is the product's intended geometry for this BMW application; confirm suspension and brake clearance on modified cars. Gloss Black gives the wheel a sharper, more aggressive look, while Brushed Silver makes the split-spoke shape more visible. For a complete staggered set, select two front wheels and two rear wheels, then confirm the final tire package before ordering.

AWZZ details for BMW M3

Forged construction, staggered M3 geometry, FEA validation, bead-seat grip, and lightweight hub machining.

AWZZ Split-Spoke Design

A real workshop photo shows the thin paired spokes, open brake visibility, and detailed forged face of the AWZZ.

Two Staggered Widths

Use 19x9.5 +22 at the front and 19x10.5 +22 at the rear for the intended BMW M3 staggered setup.

FEA-Validated Design

Finite Element Analysis evaluates load paths and stress concentration before the AWZZ design reaches production.

Knurled Bead Seats

A textured bead-seat surface helps resist tire slip under hard acceleration and braking.

Lightweight Hub Construction

Strategic back-pad and hub cutouts remove unnecessary material while preserving a secure 72.6 mm hub-centric connection.

Tire Fitment Guide

AWZZ BMW M3 E90/E92/F80 19 inch +22 recommended tire sizes.
Wheel Size Position Recommended Tire
19x9.5 +22 Front 255/35R19
19x10.5 +22 Rear 265/35R19

This is the staggered tire setup listed on the current product page. Order two front and two rear wheels, and confirm vehicle year, suspension, brake package, and final tire selection before ordering a mounted package.

Availability

If you see the "Add To Cart" button, it means our inventory is fully stocked, ensuring prompt delivery. Expect your items to be on their way within two business days after you've made your purchase.

Features

  • All Atomic Wheels are covered by our lifetime structural warranty.
  • Each set comes with color-matched Atomic Wheels center caps.

Custom order

If the design or size you are looking for is not available, we are pleased to offer you the option to create a custom order.

This allows you to tailor your wheels to your specific preferences and needs. We also provide a wide range of color options to ensure that your wheels perfectly match your vision.

More details

FAQ

What is the difference between a forged rim and a flow-formed rim?

The main difference between forged and flow-formed rims lies in their manufacturing processes and materials. Forged rims, made from 6061-T6 aluminum, are formed under extreme pressure and then precisely machined using CNC technology, resulting in ultra-strong, lightweight wheels ideal for high performance. Flow-formed rims, also known as spin-formed, start with a cast mold and are shaped using hydraulic pressure and rotation. This enhances the strength of cast rims while maintaining a more affordable price point, offering a solid balance of performance and cost.

Where do you make the wheels?

The factory where we manufacture the rims is in China. They are made with state-of-the-art technology, subjected to rigorous safety and quality control processes.

Do you ship outside of the United States?

Yes, we ship worldwide. However, purchasing a rim in stock can be expensive due to shipping costs. Therefore, we recommend placing a custom order where items are shipped directly from the factory to reduce costs. In this way you will get the same price worldwide, because the rims will be delivered from the factory.

What Tire Sizes Do You Recommend for Installing Your Rims?

We recommend sticking with OEM sizes for the best performance and fit. However, there is often some room for alternatives based on your specific needs and preferences. We’re happy to help with any questions and guide you in choosing the best tire size for your setup.

What Are Your Cancellation Policies if I Want a Refund on My Pre-Order?

If you’ve made a pre-order payment, you can cancel your order and request a refund at any time before the shipment is processed.

How Long Does It Take to Receive an Order After Making a Purchase?

We ship orders twice a week on Tuesdays and Fridays using UPS Ground. Typically, it takes 2-5 business days for wheels to be delivered after shipment.

Can I Pick Up the Rims Directly if I’m Near Your Location?

Yes, you can pick up the rims directly if you’re near our location. Please note that Texas sales tax will be applied to in-state sales.

Are Your Center Caps Compatible with the OEM Ones?

Most of our center caps are 65mm, so they are not compatible with the OEM center caps.
